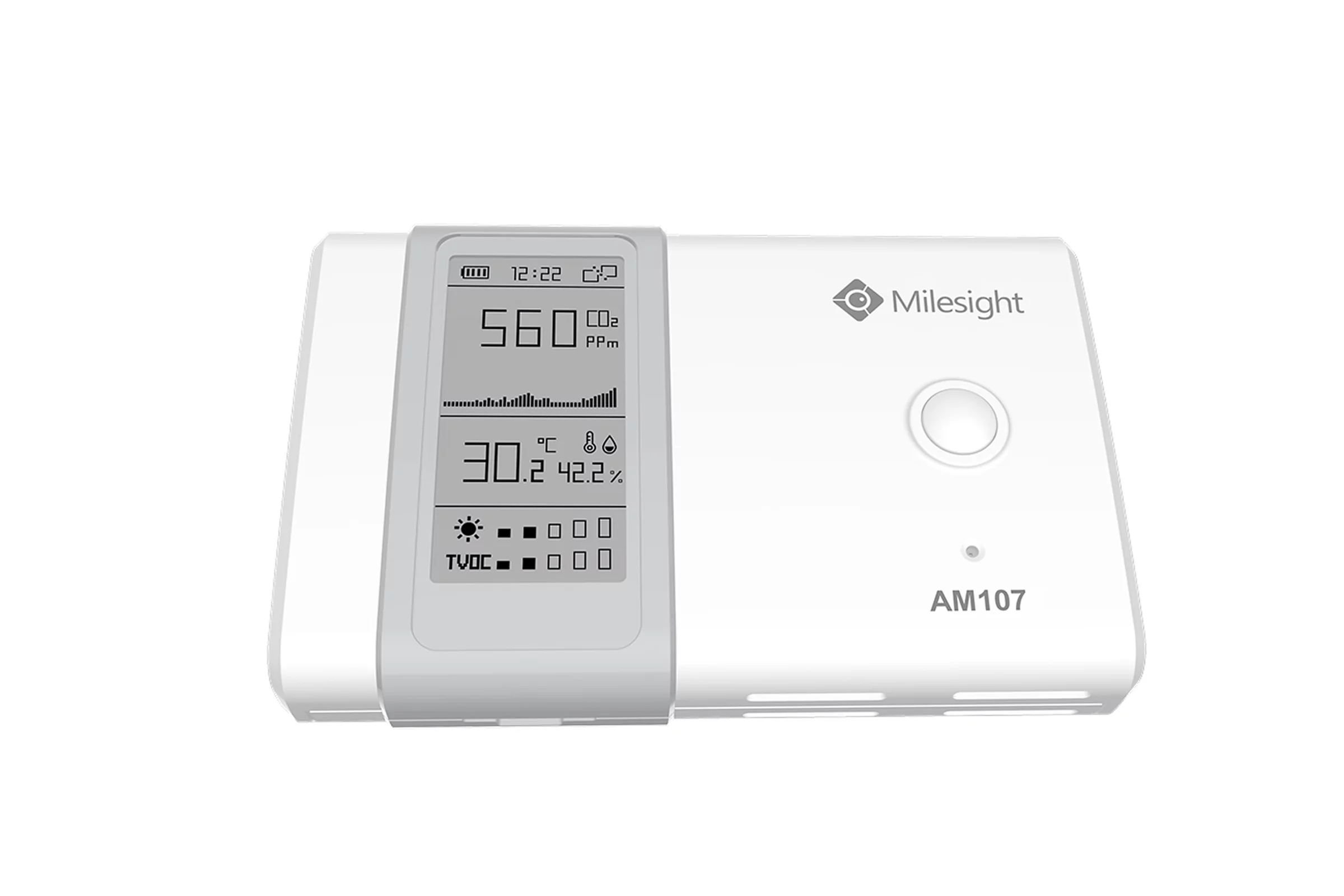

Milesight LoRaWAN® Indoor Ambience Monitoring Sensor – AM107-915M

$3,510.00

Sensor: Temperature, Humidity, PIR, Light, TVOC, Barometric Pressure, Carbon Dioxide (CO2)
2 * AA Alkaline Batteries / Type-C Port Power Supply
E-ink Screen / Smart Display
NFC Enabled
IP30 Rated

SKU: AM107-915M Category: Tag:

Description

HardwareFrequencyCN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power20dBm
Sensitivity-137dBm @300bps
ModeOTAA/ABP
Power Supply2 × alkaline AA batteries or powered via USB type-C
Battery Lifetime0.9 years (SF7)
0.7 years (SF10)
1.1 years (VOC disabled，SF7)
0.9 years (VOC disabled，SF10)
SensorsTemperature
Range-20°C to + 70°C (operating temperature for screen: 0-45°C)
Accuracy±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C)
Humidity
Range0% to 100% RH
Accuracy±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%)
PIR
Detection Area94 ° Horizontal, 82 ° Vertical
Detection Distance5 m
Light
Range60000 lux (Visible + IR, IR)
Accuracy±30%
CO2
Range400 – 5000 ppm
Accuracy±30 ppm or ±3 % of reading
TVOC
Range0 – 60000 ppb (total VOC)
Accuracy±15 % of reading
Long-term Stability1.3 % accuracy drift per year
Barometric Pressure
Range300 – 1100 hPa (-40°C – 85°C)
Accuracy±1 hPa
